PLine/Line Diffuser Installation
Proper installation ensures that Ventmann PLine and Line Diffusers perform at their best. Our diffusers are designed for seamless integration into modern interiors, offering both functionality and aesthetics. Follow the step-by-step installation guide or consult with our engineers for tailored support, ensuring an efficient and flawless setup.
LINE DIFFUSER INSTALLATION

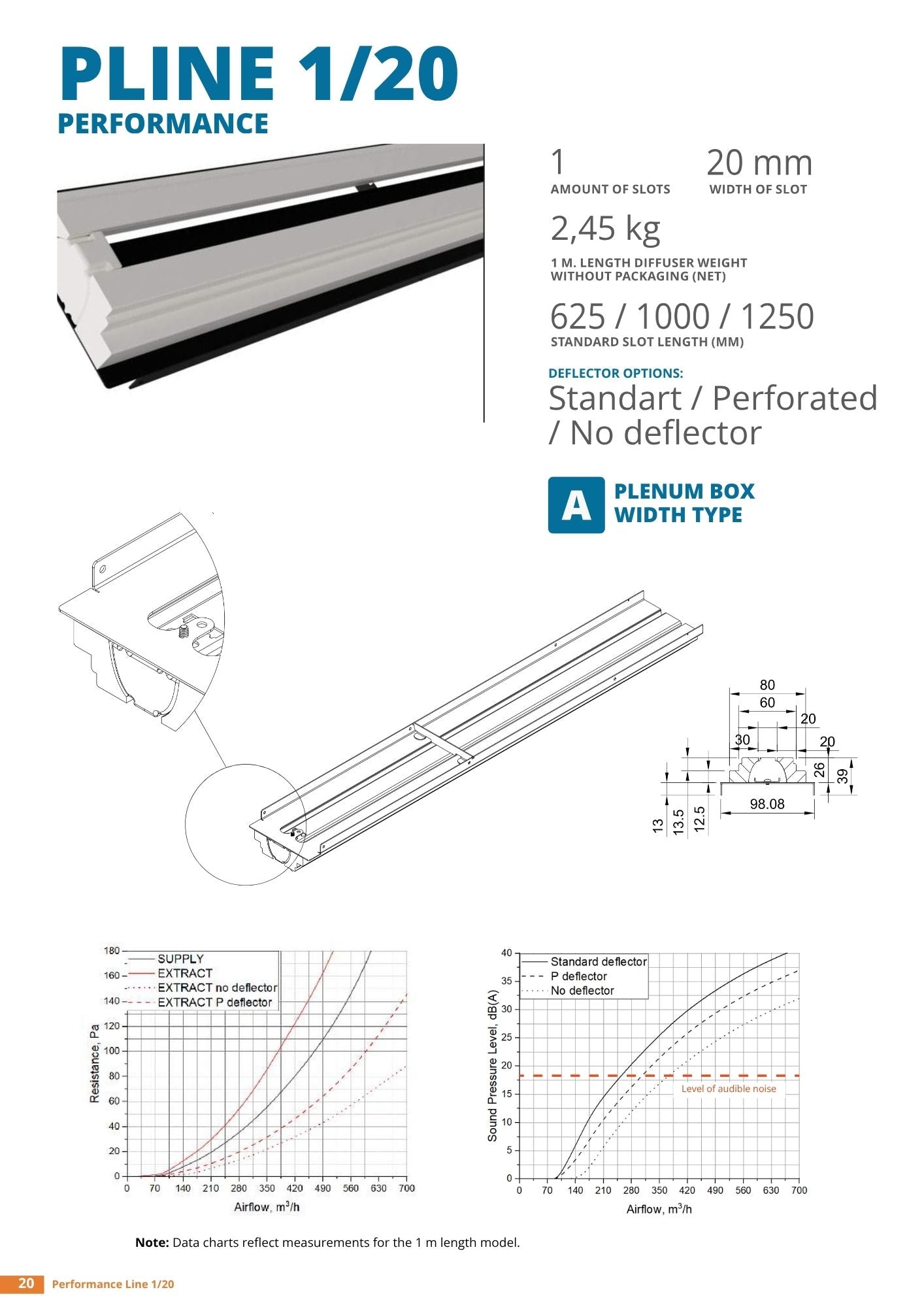

Ventmann PLINE 1 SLOT Gypsum Diffuser - Techical Specifications
PLINE 1 SLOT Diffuser
The Ventmann Performance Line (PLINE) 1 Slot Gypsum Diffuser is a premium air diffuser designed for modern architectural interiors. Built from durable gypsum and frameless in design, it integrates seamlessly into ceilings or walls, delivering efficient and quiet airflow while maintaining a minimalist finish.
Key Specifications
- Weight (net, without packaging): 2.45 kg
- Length Reference Model: Data provided for 1 m length diffuser
- Deflector Options:
- Standard
- Perforated
- No Deflector - Plenum Box Width Type: Performance Line 1/20 (2020 model reference)
- Noise Level: Optimized for low-noise operation, providing quiet air distribution suitable for residential and commercial environments

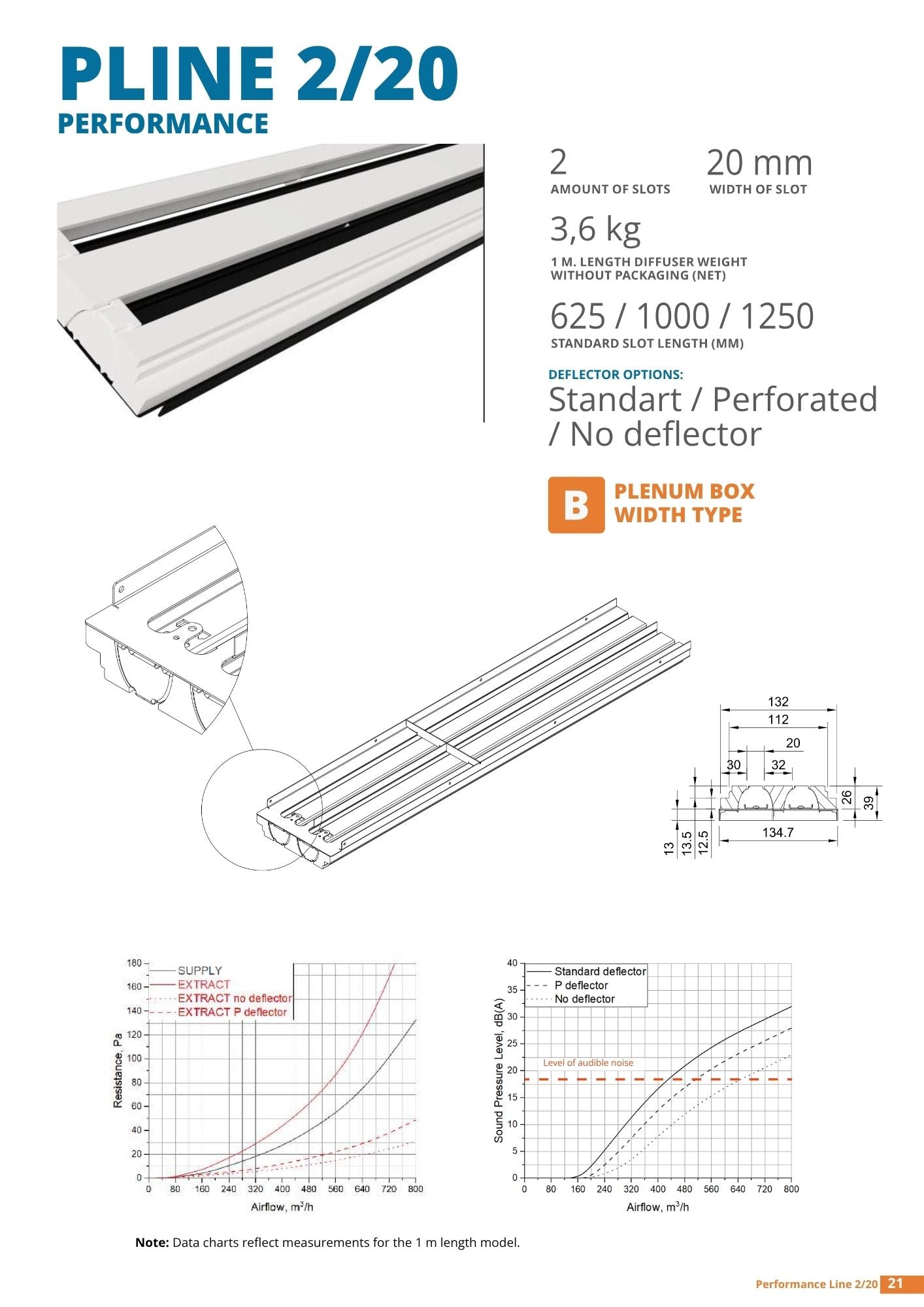

Ventmann PLINE 2 SLOTS Gypsum Diffuser - Techical Specifications
PLINE 2 SLOTS Diffuser
The Ventmann Performance Line (PLINE) 2 Slots Gypsum Diffuser is a high-quality air diffuser engineered for architectural projects where both performance and design are essential. Built from durable gypsum and frameless in construction, it integrates seamlessly into ceilings or walls, ensuring efficient airflow with a discreet, minimalist appearance.
Key Specifications
- Weight (net, without packaging): 3.6 kg
- Length Reference Model: Data provided for 1 m length diffuser
- Deflector Options:
- Standard
- Perforated
- No Deflector
- Plenum Box Width Type: Performance Line 2/20
- Noise Level: Designed for low-noise airflow distribution, ensuring quiet operation in residential and commercial spaces

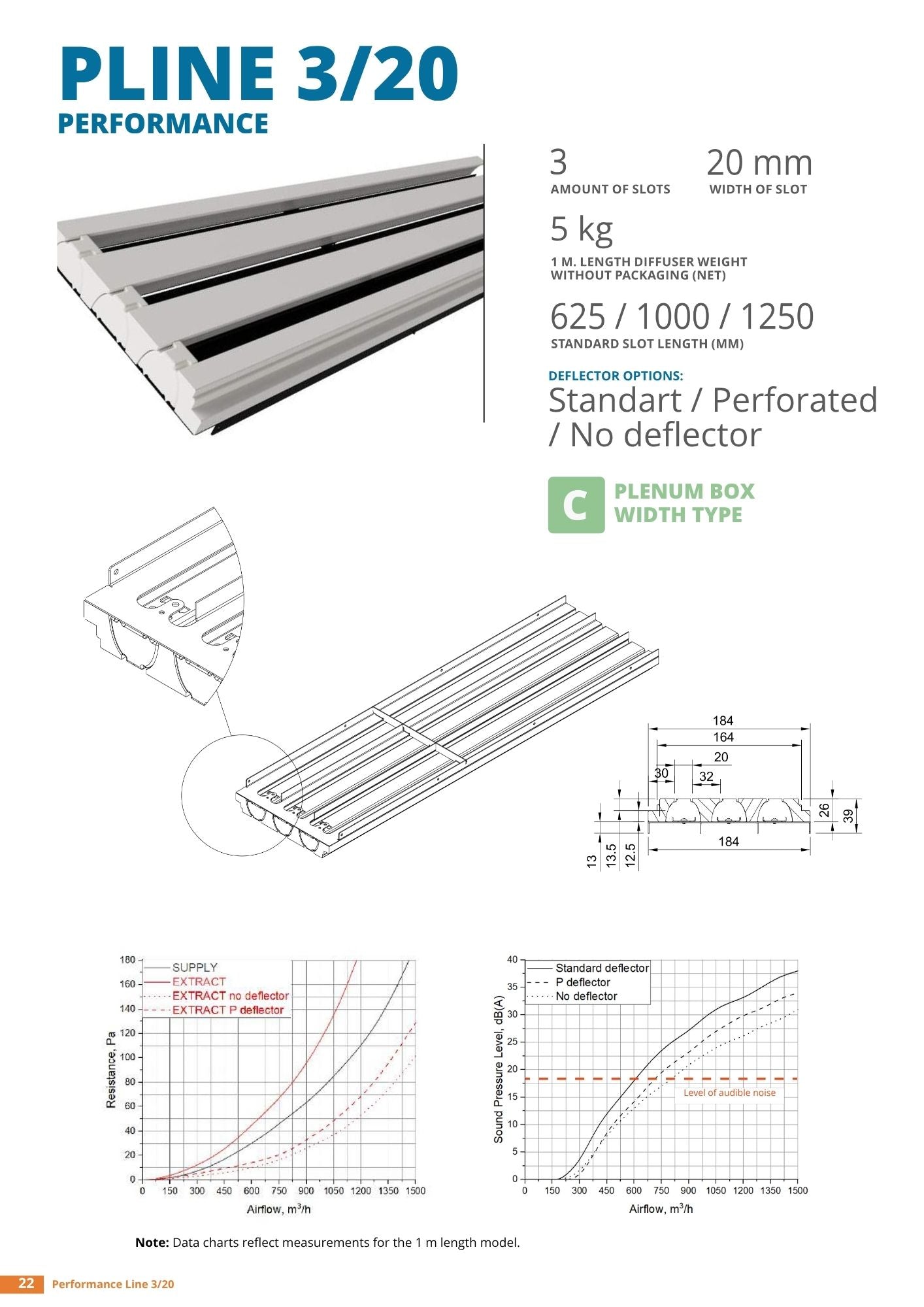

Ventmann PLINE 3 SLOTS Gypsum Diffuser - Techical Specifications
PLINE 3 SLOTS Diffuser
The Ventmann Performance Line (PLINE) 3 Slots Gypsum Diffuser is a high-quality air diffuser engineered for architectural projects where both performance and design are essential. Built from durable gypsum and frameless in construction, it integrates seamlessly into ceilings or walls, ensuring efficient airflow with a discreet, minimalist appearance.
Key Specifications
- Weight (net, without packaging): 5 kg
- Length Reference Model: Data provided for 1 m length diffuser
- Deflector Options:
- Standard
- Perforated
- No Deflector
- Plenum Box Width Type: Performance Line 3/20
- Noise Level: Designed for low-noise airflow distribution, ensuring quiet operation in residential and commercial spaces
