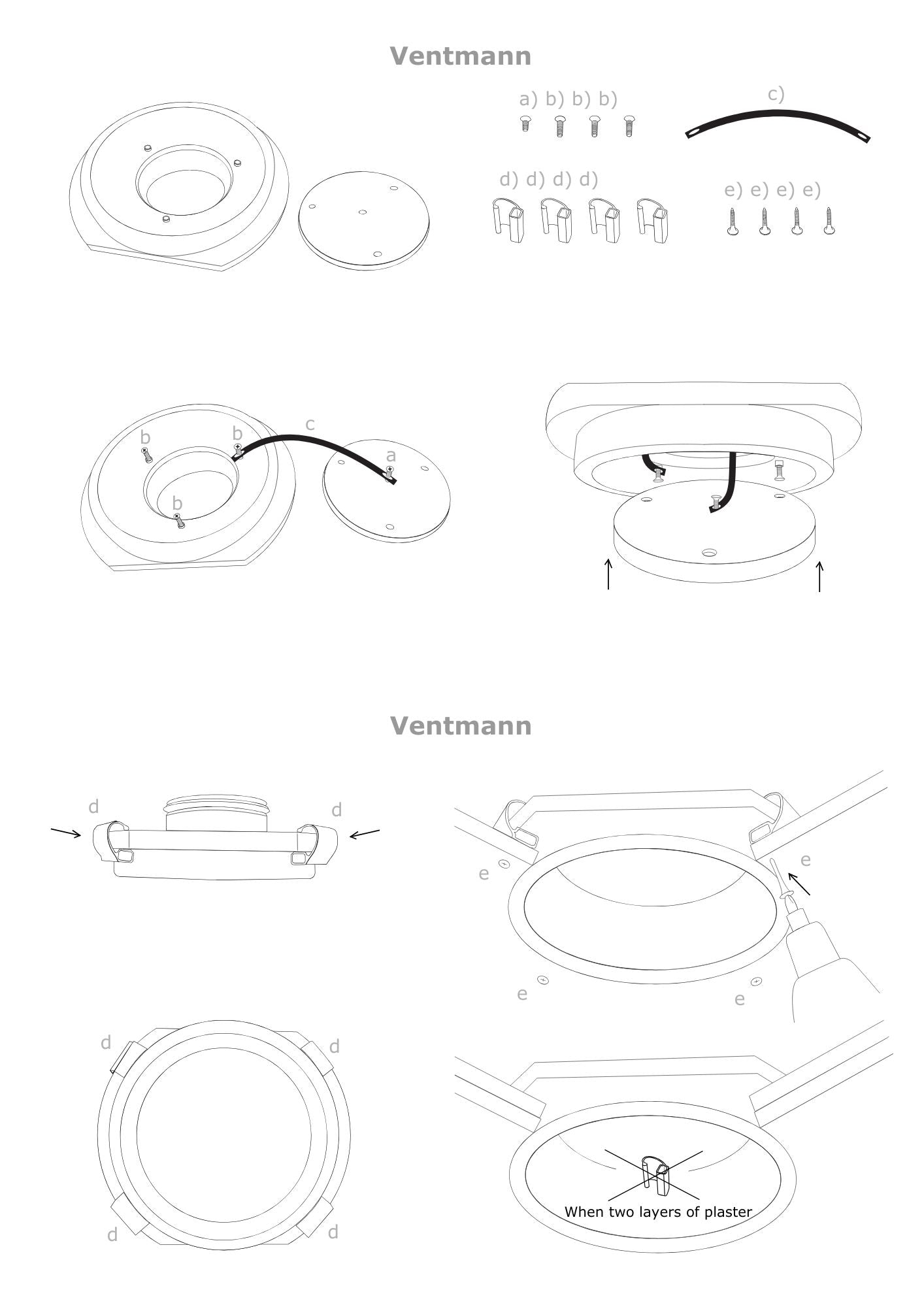

PCircle Diffuser Installation

Step 1: Preparation

1. Identify all included parts and ensure nothing is missing.

2. Prepare the installation site in the ceiling, ensuring enough space for the unit.


Step 2: Cable Connection

1. Attach the cable (c) to the back plate using screw a.

2. Secure the other side of the cable to the main unit using screws b.


Step 3: Mounting the Unit

1. Position the back plate on the ceiling opening.

2. Insert the connected cable and raise the plate into position.

3. Secure the plate by tightening screws b into the main unit.


Step 4: Fixing the Mounting Clips

1. Attach the mounting clips (d) on the sides of the unit by pressing them into place.

2. Once all clips are in position, secure them with screws e.


Step 5: Installing into Ceiling

1. Place the unit into the prepared ceiling opening.

2. The clips (d) will hold the unit firmly in place.

3. For double plasterboard ceilings, use the extended clip setting as shown in the diagram (“When two layers of plaster”).

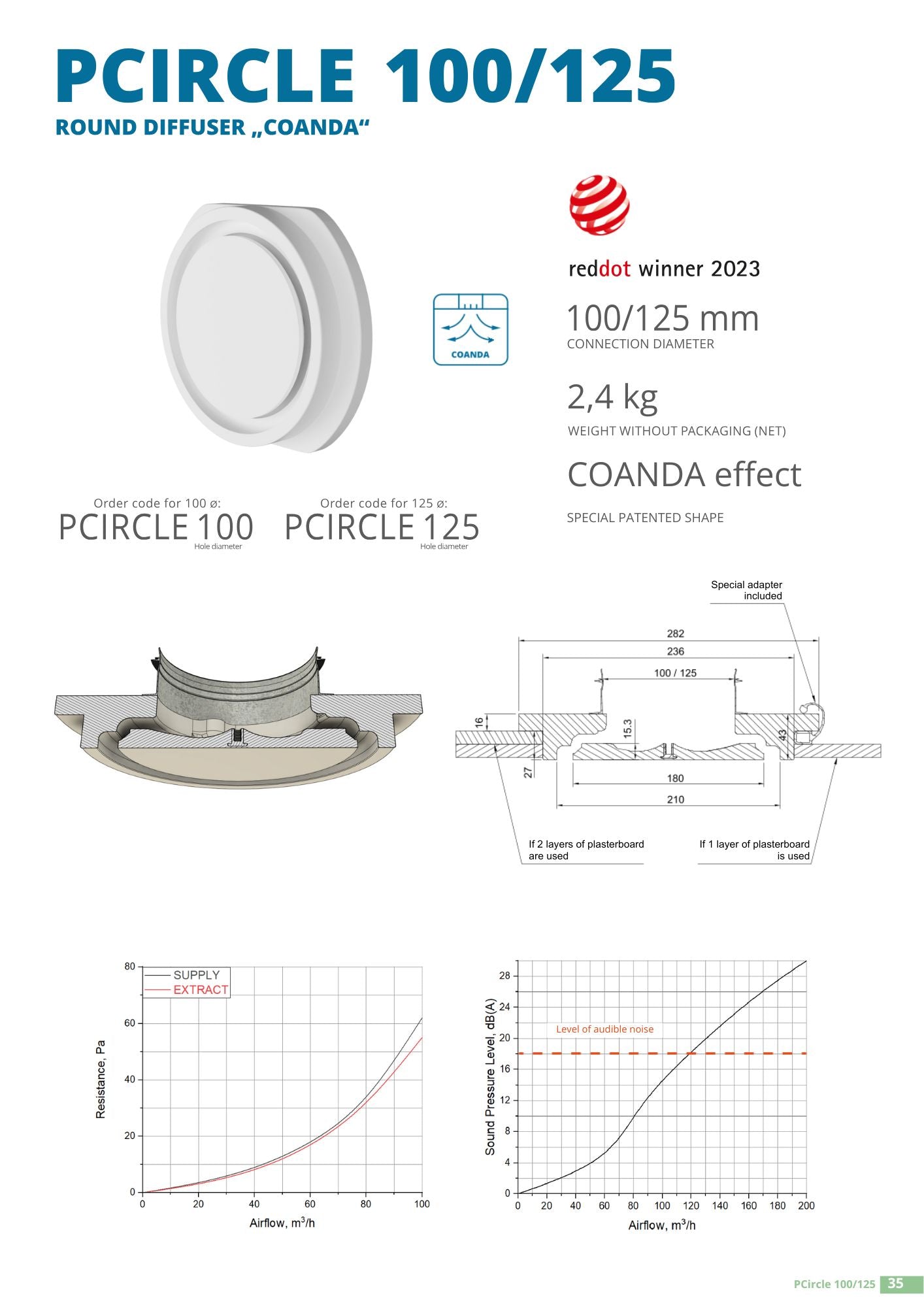

• Connection Diameter: 100 mm / 125 mm

• Weight (Net): 2.4 kg (without packaging)

• Special Feature: Designed with Coanda effect for improved air distribution

• Design: Special patented aerodynamic shape

• Installation: Includes a special adapter, suitable for both single and double plasterboard ceilings

• Dimensions:
  - Outer diameter: 282 mm
  - Inner connection diameter: 100/125 mm
  - Mounting diameters: 180 mm (inner), 210 mm (outer)


Performance Graphs:

• Airflow vs. Resistance:
  - Moderate resistance increase up to 100 m³/h airflow
  - Slightly higher resistance in supply mode than extract
• Airflow vs. Sound Pressure Level:
• Audible noise threshold (~16 dB(A)) is reached at around 120 m³/h airflow


Award:

• Red Dot Winner 2023

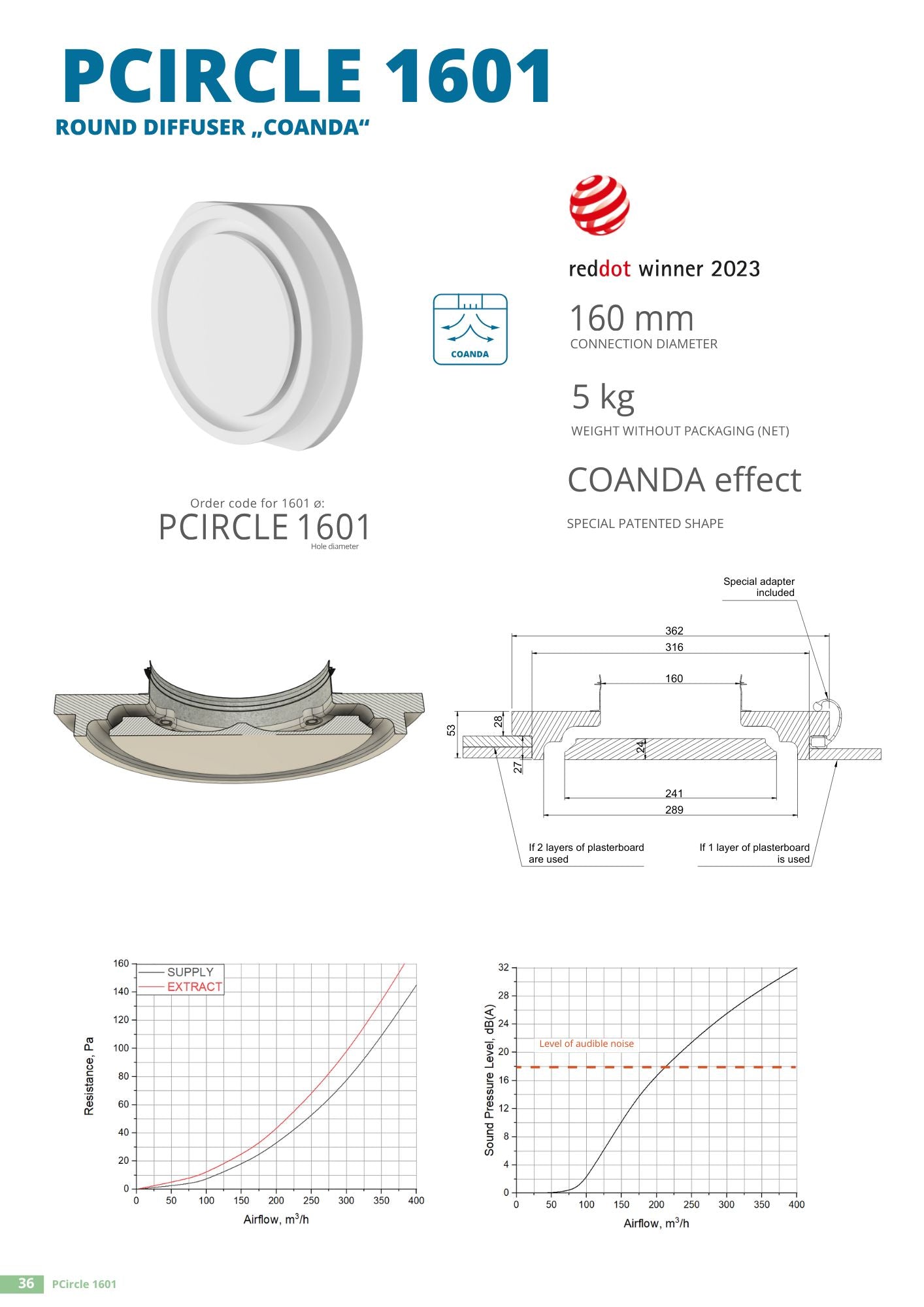

• Connection Diameter: 160 mm
• Weight (Net): 5 kg (without packaging)
• Special Feature: Utilizes the Coanda effect for optimal air distribution
• Design: Special patented shape
• Installation: Comes with a special adapter, compatible with both 1 and 2 layers of plasterboard

• Dimensions:
  - Outer diameter: 362 mm
  - Inner connection diameter: 160 mm
  - Mounting diameters: 241 mm (inner), 289 mm (outer)


Performance Graphs:

• Airflow vs. Resistance:
  Shows increasing pressure resistance with airflow (higher for supply than extract).

• Airflow vs. Sound Pressure Level:
  Audible noise begins around 200 m³/h airflow (threshold ~16 dB(A)).


Award:

• Red Dot Winner 2023

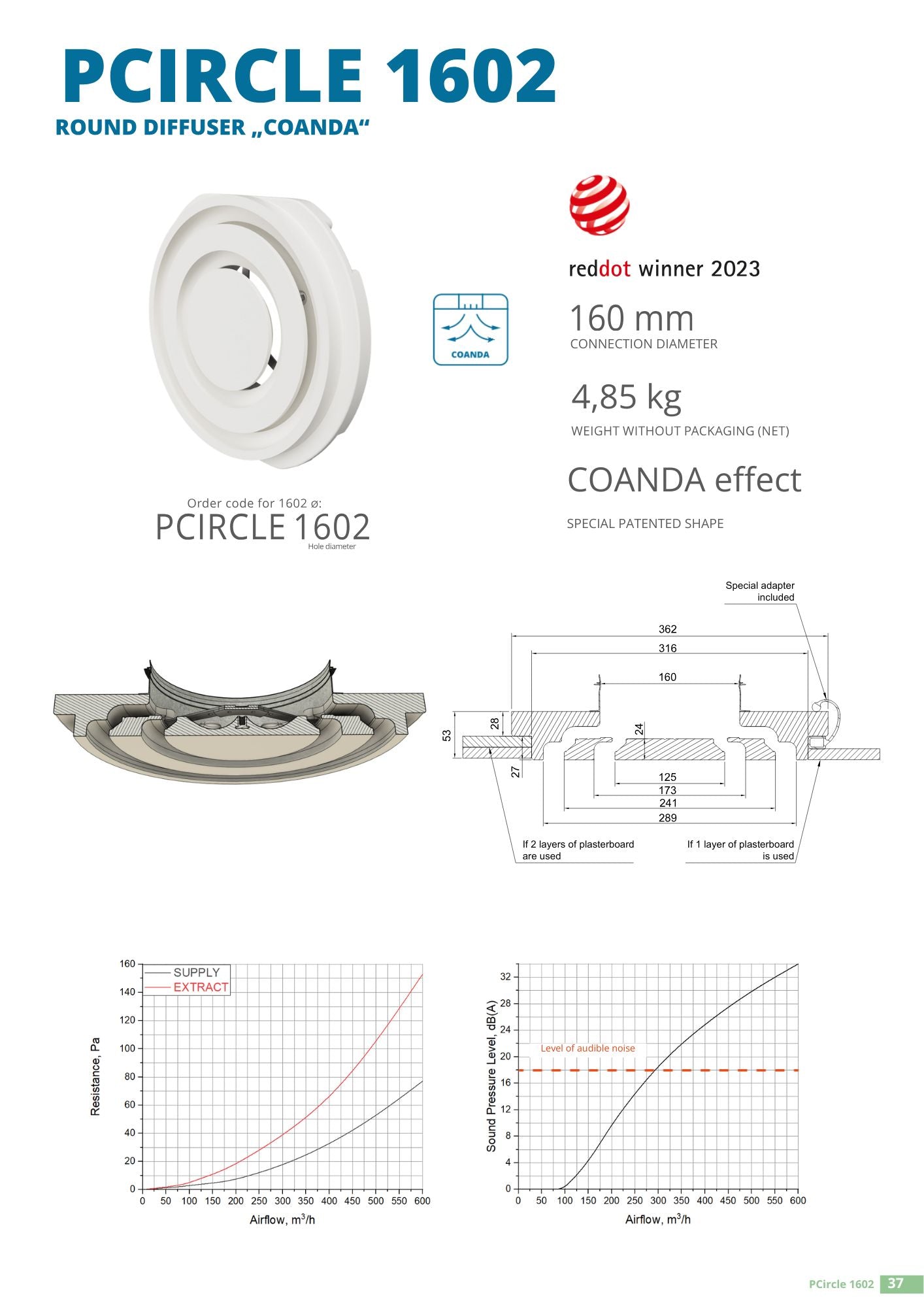

• Connection Diameter: 160 mm
• Weight (Net): 4,85 kg (without packaging)
• Special Feature: Utilizes the Coanda effect for optimal air distribution
• Design: Special patented shape
• Installation: Comes with a special adapter, compatible with both 1 and 2 layers of plasterboard

• Dimensions:
  - Outer diameter: 362 mm
  - Inner connection diameter: 160 mm
  - Mounting diameters: 125 mm, 173 mm, 241 mm, 289 mm

- Central core diameter: 125 mm

Performance Graphs:

• Airflow vs. Resistance:
  - Resistance increases steeply with airflow, particularly in supply mode
  - Designed for higher airflow range (up to 600 m³/h)
• Airflow vs. Sound Pressure Level:
  - Audible noise threshold (~16 dB(A)) is crossed around 250 m³/h airflow


Award:

• Red Dot Winner 2023

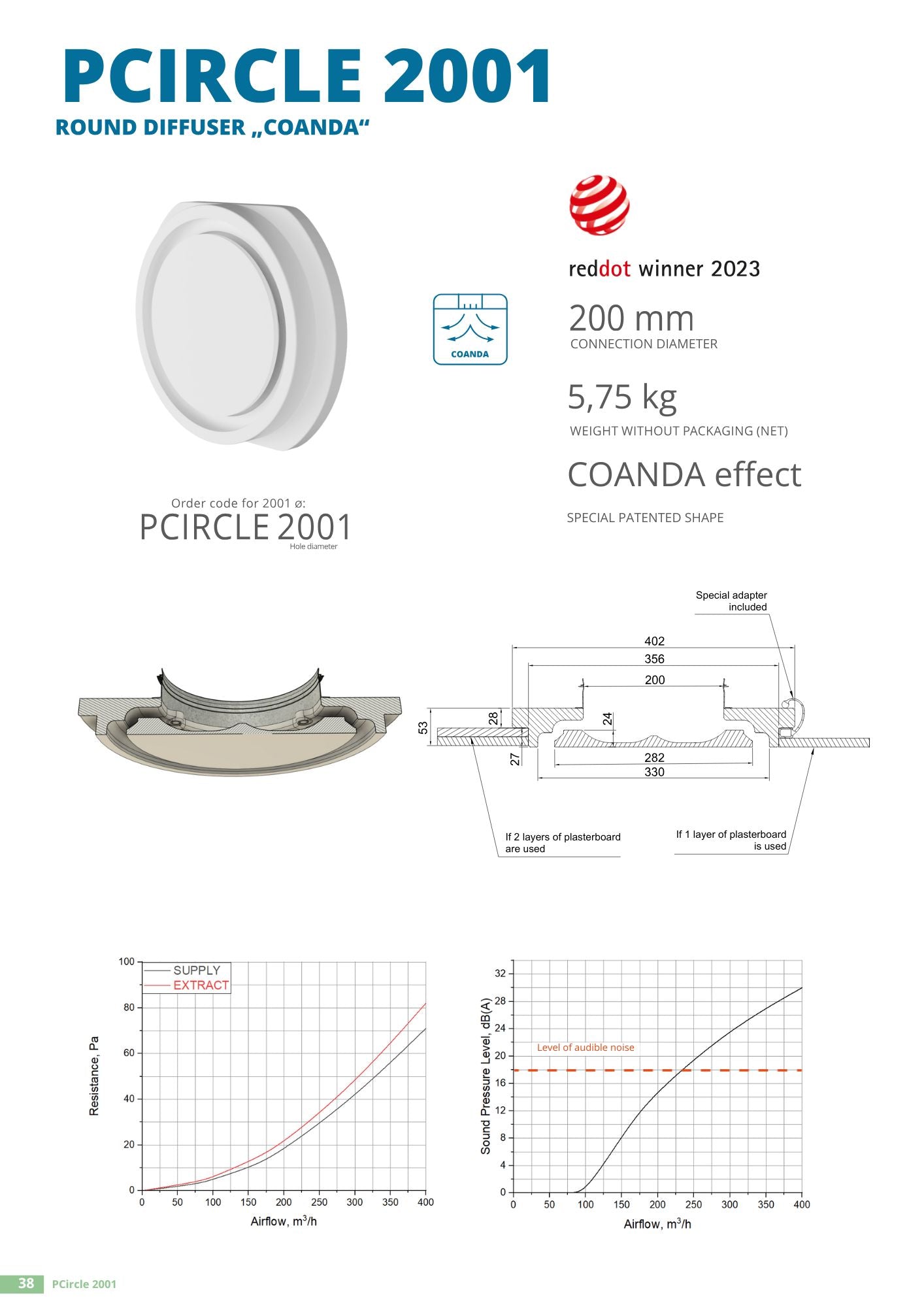

Key Specifications:

• Model: PCIRCLE 2001

• Award: Red Dot Winner 2023

• Connection Diameter: 200 mm

• Weight (Net, without packaging): 5.75 kg

• Technology: Coanda Effect for optimal air distribution

• Shape: Patented design to enhance air deflection and ceiling flow

Mechanical Details:

• The diffuser is installed flush with plasterboard ceilings.

• Adaptability:
  - Compatible with both single and double layers of plasterboard.
  - A special adapter is included for flexible installation.

• Dimensions:
  - Overall diameter: 402 mm
  - Mounting diameter: 356 mm
  - Connection opening: 200 mm
  - Inner diffuser ring: 282 mm
  - Ceiling cut-out options:
  - 24 mm recessed for 1 layer of plasterboard
  - 28 mm recessed for 2 layers of plasterboard

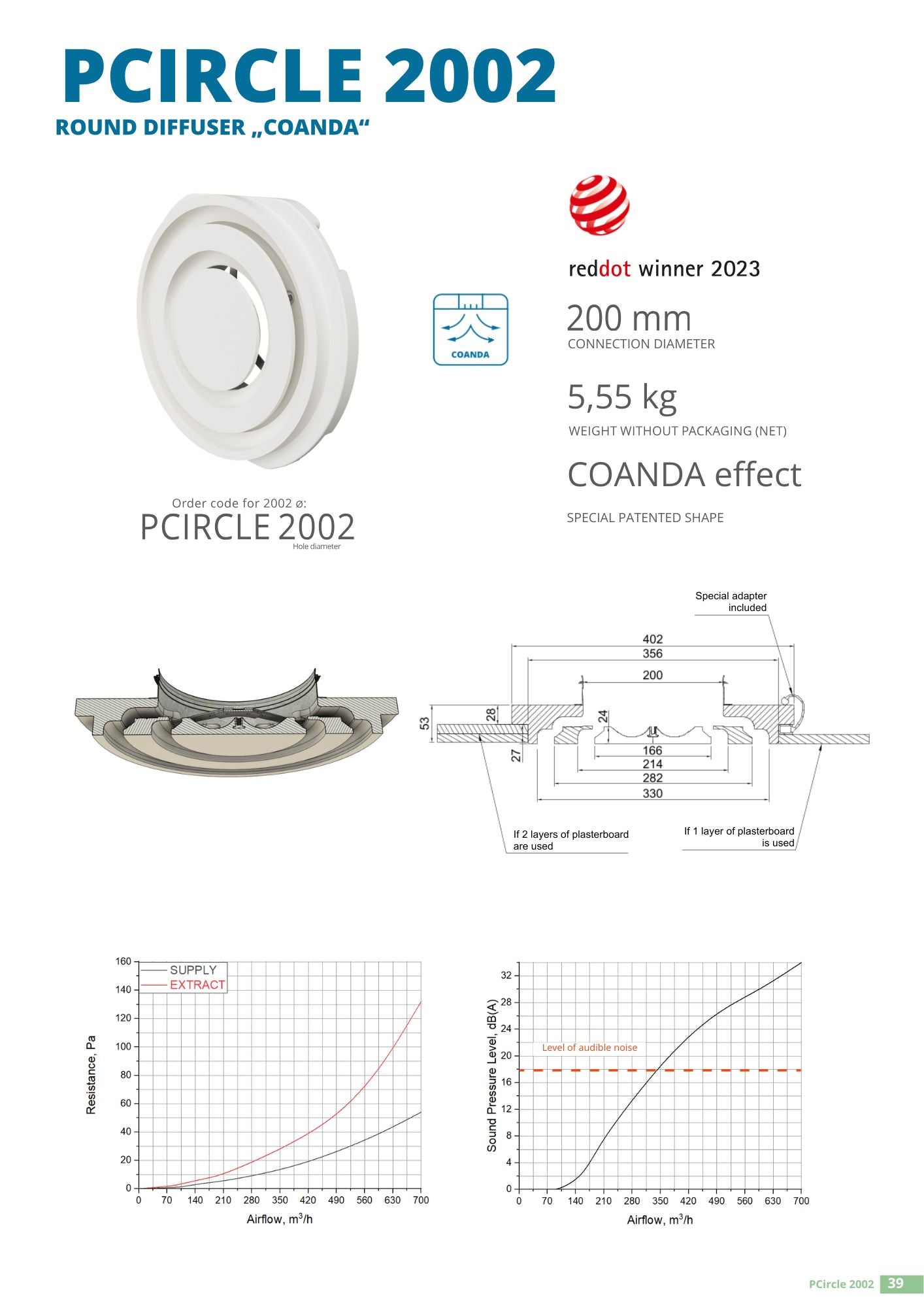

Technical Specifications:

• Connection Diameter: 200 mm

• Net Weight (without packaging): 5.55 kg

• Technology: Coanda effect with specially engineered shape

• Award: Red Dot Winner 2023

• Order Code: PCIRCLE 2002 Ø (based on hole diameter)

• Adapter: Special adapter included for installation flexibility


Installation Details:

• Can be installed in ceilings with:
  - 1 layer of plasterboard (24 mm recess)
  - 2 layers of plasterboard (28 mm recess)

• Overall dimensions:
  - External diameter: 402 mm
  - Cut-out diameter: 356 mm
  - Visible inner element: 166 mm
  - Intermediate diffuser rings: 214 mm and 282 mm
  - Ceiling integration diameter: 330 mm
